Preorder: xTool Rotary Attachment RA3 for P3 Laser

Preorder: The item has been back-ordered from the manufacturer and will arrive shortly.
The item will be dispatched as soon as possible as soon as it reaches our warehouse.

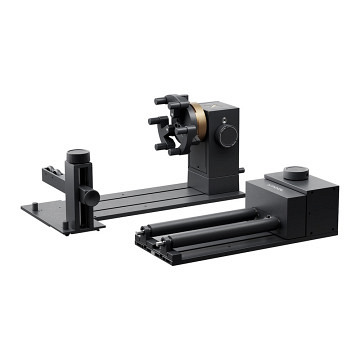

The xTool RA3 MagSwap™ Rotary Attachment allows you to engrave a wide range of cylindrical objects such as mugs, rings, vases, glasses, bottles, and much more.

The improved plug-in system lets you reconfigure the rotary attachment within seconds so it perfectly fits your application.

Auto-Detection with the xTool P3
When used with the xTool P3, the rotary attachment is automatically detected by your laser, and a 3D preview of your workpiece is created in the software. Even complex shapes, such as vases with varying diameters, are automatically detected thanks to the new xTool P3 technology, and the focus is adjusted accordingly for even better results.

Optional Batch Production
Optionally, you can connect multiple xTool rotary units in sequence to engrave several candle glasses or similar objects simultaneously, making series production much easier.

The RA3 Rotary Attachment is only compatible with the xTool P3.

The RA3 offers the following modes and diameters:

Roller Mode (3–198 mm diameter)

• Two rollers rotate the object
• Ideal for various cylindrical items such as tealight holders, drinking glasses, and more
• Can be used with multiple rollers for batch production

Chuck Mode (0–130 mm diameter)

• Object is clamped and rotated
• Perfect for complex shapes with varying thickness or handles such as tumblers, bottles, mugs, etc.

Sphere Mode (25–100 mm diameter)

• Object is clamped on one side and secured with pins on the other
• Suitable for spherical objects such as Christmas ornaments, baseballs, etc.

Ring Mode (11–70 mm diameter)

• Object is mounted on three rods and rotated
• Ideal for engraving rings (inside & outside)
• Also allows vases to be mounted and engraved all around

Specifications:

• Product size: 324 x 187 x 148 mm
• Weight: 2.26 kg
• Compatible only with xTool P3

Scope of Delivery:

• xTool RA3 MagSwap™ Rotary Attachment for xTool P3
